Differences Between GPIB Connector Types

Updated Dec 19, 2023

Reported In

Hardware

  • GPIB Connector

Issue Details

I cannot connect a GPIB cable connector to a PCIe card.
The PC chassis blocks the GPIB cable and connector to fit in properly.



Solution

There are multiple types of GPIB connectors and extensions from the following link.
GPIB Connector-NI

XA- 181638-01 - Connector only
XE- 182768-01 - Reverse entry Female - Female
XF- 182770-01 - Reverse entry extender Male - Female
XC- 182766-01 - Bulkhead Female - Female
XD- 182767-01 - reverse entry bulkhead Female -Female

XA
A picture containing connector Description automatically generated


XE
A picture containing connector, text Description automatically generated


XF
A picture containing text, diagram, parallel, technical drawing Description automatically generated

XC
The image below is obtained from GPIB Bulkhead Dimensional Drawings - NI

A picture containing text, sketch, diagram, drawing Description automatically generated
XD

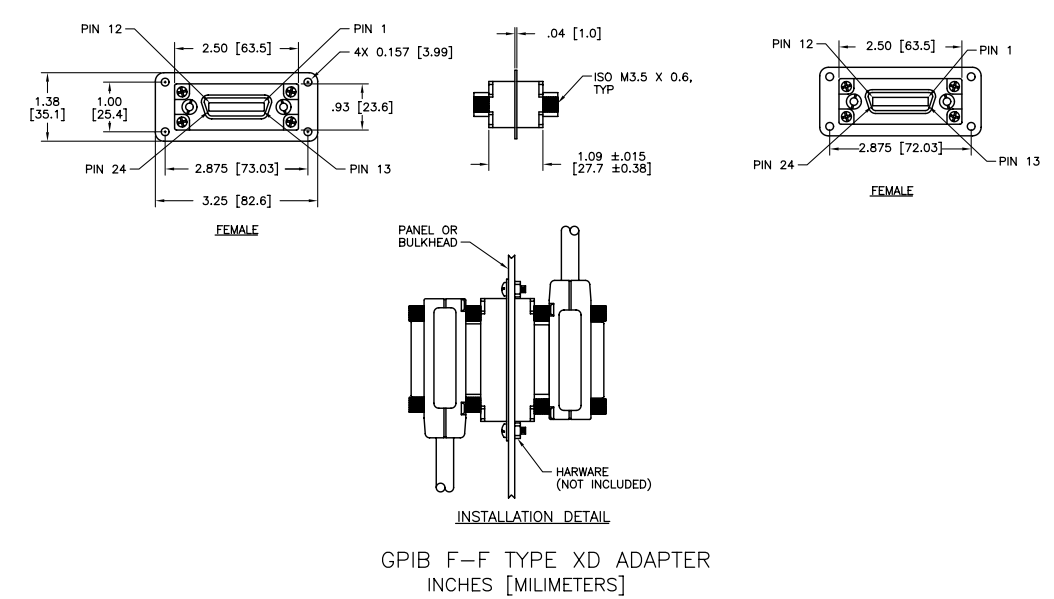

The image below is obtained from GPIB Bulkhead Dimensional Drawings - NI
A picture containing text, diagram, sketch, technical drawing Description automatically generated
