Wire Mapping for SHC68-C68-D3 and SHC68-C68-D4

Updated Sep 16, 2024

Reported In

Hardware

  • SHC68-C68-D4 Cable
  • SHC68-C68-D3 Cable

Issue Details

Where can I find a wire map for the SHC68-C68-D3 and SHC68-C68-D4 Cables?

Solution

The wire mappings for the SHC68-C68-D3 and SHC68-C68-D4 Cables can be found below.

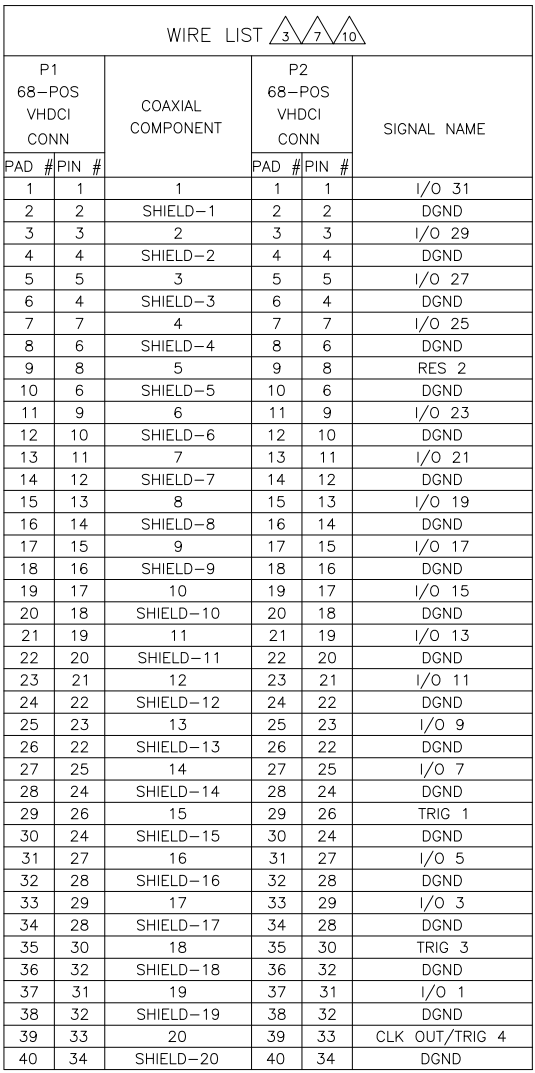

Group A of the SHC68-C68-D3 Cable

Group A D3.png

Group B of the SHC68-C68-D3 Cable

Group B D3.png


Pins 1 to 34 of the SHC68-C68-D4 Cable

P1-P34 D4.png

Pins 35 to 68 of the SHC68-C68-D4 Cable

P35-P68 D4.png
