Cabling Clearances for C Series Modules

Updated Jul 2, 2018

Reported In

Hardware

  • CompactRIO Controller
  • CompactDAQ Chassis
  • CompactDAQ Controller
  • C Series Accessories

Issue Details

How much clearance do the different types of C Series module connectors require for cables and backplanes?

Solution

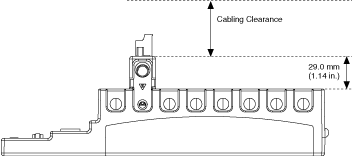

The cable clearance varies depending on the C series module connector you use. Cables and backshells require sufficient space to prevent crimped cables, which can distort measurements.






The following table shows the amount of space required for each type of C Series module connector:

Module/Connector Type

  Required Clearance

NI TB-921482.3 mm (3.2 in.)
NI DB37F-DB37M LP50.8 mm (2.0 in.)
NI 992376.2 mm (3.0 in.)
NI 992476.2 mm (3.0 in.)
BNC63.5 mm (2.5 in.)
RJ5050.8 mm (2.0 in.)
37-position DSUB86.4 mm (3.4 in.)
25-position DSUB91.4 mm (3.6 in.)
15-position DSUB61.0 mm (2.4 in.)
9-position DSUB68.6 mm (2.7 in.)
NI 9975 (16-position screw terminal)40.6 mm (1.6 in.)
NI 9936 (10-position screw terminal)48.3 mm (1.9 in.)
NI 9976 (2-position screw terminal)30.5 mm (1.2 in.)
NI 9974 (36-position spring terminal)48.3 mm (1.9 in.)
NI 9966 (24-position spring terminal)58.4 mm (2.3 in.)
NI 9973 (6-position spring terminal)43.2 mm (1,7 in.)
