How to Change the Grid Size of Front Panel

Updated Nov 17, 2023

Reported In

Software

  • LabVIEW

Issue Details

I want to change the grid size of front panel. How can I do that?


Solution

  • New VIs
Changing the grid in LV options will apply to new VIs.
Tools>>Options..>>Front Panel>>Front Panel Grid>>Default panel grid size (pixels)

  • Existing VIs
Changing the grid in the VI properties will apply immediatly to existing VI.

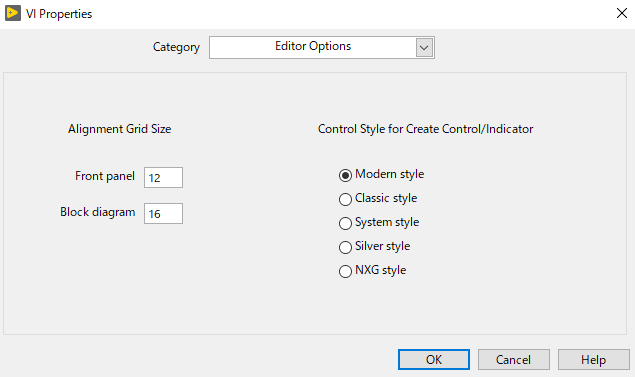

File>>VI Properties>>Editor Options>>Alignment Grid Size>>Front panel

Related Links

Front Panel Page (Options Dialog Box) - LabVIEW Help - National Instruments
